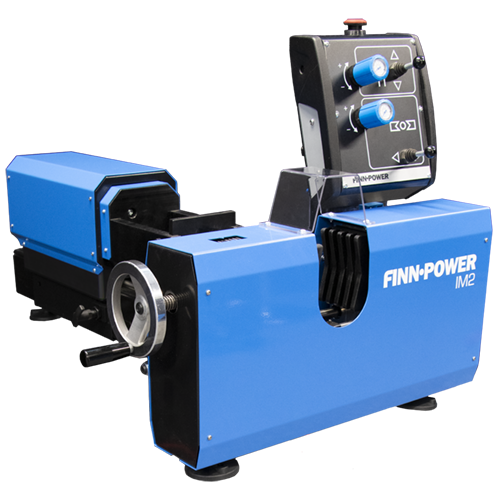

Finn-Power air pressure operated IM2 is an ergonomic fitting pre-assembling machine for hoses up to 3”.
IM2 makes fitting assembling quick and easy.
Optional stand with adjustable feeding angle enables optimal ergonomy for different type of hoses.
Standard Features
| Pushing pressure adjustment |
| Clamping pressure adjustment |
| Adjustable centering position with scale |
| Adjustable hose feeding angle (requires stand) |
Standard Tool Set for IM2
| Tool No |
Hose size (inches) |
| 715598 |
5/16 |
| 715593 |
1/4 |
| 715597 |
3/8 |
| 715592 |
1/2 |
| 715516 |
5/8 |
| 715596 |
3/4 |
| 715594 |
1 |
| 715591 |
1 1/4 |
| 715590 |
1 1/2 |
| 715595 |
2 |
| 718446 |
2 1/2 |
| 718447 |
3 |
Technical Data
| Capacity (inches) |
3 |
| Max. Hose outer diameter (mm) |
100 |
| Max. Inserting force (kN) |
6.2 |
| Max. Clamping force (kN) |
4.0 |
| Max. Pressure (Bar) |
8.00 |
Dimensions (LxWxH)
| IM2 table-model (mm) |
1017x733x649 |
| IM2 with stand (mm) |
1017x733x1280 |
Weight (KG/LBS)
| IM2 table-model |
1017x733x649 |
| IM2 with stand (mm) |
1017x733x1280 |
