- Lightweight, portable construction
- Efficient, fast pump
- Impressively high crimping force
- Reliable crimper for field service
Finn-Power P16HPZ
Hose size up to 1”
Crimping Range – Up to 45mm
95 tons of crimping force
Finn-Power portable crimping machines are designed for field service when repairs must be made on-site. Finn-Power service machines are simple and straightforward in construction, easy to operate and highly reliable. The Finn-Power service line has selection of power packs from hand pump, air over hydraulic to battery operated solutions for finding the best fit to solve the service need. Finn-Power service line machines are also easy to carry to any location because of their light weight and portability.

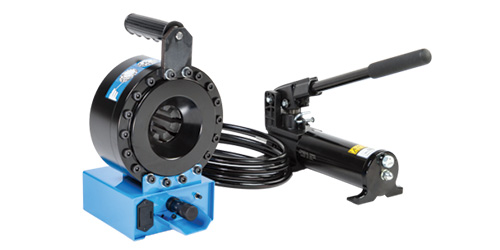

Finn-Power’s P16HPZ is a compact machine which is designed for field service. It is easy and flexible to operate because of its excellent features.
P16HPZ is suitable for challenging working conditions and it’s highly reliable. This machine is perfect for field service because it works even in places where electricity or compressed air are not available. P16HPZ is hand-operated portable machine which is easily movable because of its compact size. This crimper is easy to operate and it enables efficient working anywhere. P16HPZ connects the pump with a flexible hydraulic hose.
Standard Inclusions
Integrated control Unit
Technical Data
| Description | P16HPZ |
|---|---|
| Crimping Range Ø (mm) ₁ | 10-45 |
| Max. crimping force (kN) | 955 |
| Hose size ID (inch) | 1 |
| Die Set ₂ | P16 |
| Max. opening (mm) ₃ | +20 |
| Master die D/L (mm) | 39 / 64 |
| Control | Manual |
| Operation | Hand Pump |
| Size: Length (mm) | 331 |
| Size: Width (mm) | 401 |
| Size: Height (mm) | 271 |
| Weight incl. oil (kg) | 26 |
Key:
- With standard dies. Crimping range can be increased with special dies.
- See table for standard die set data
- Maximum opening is the total die travel. Add this value to the minimum crimping diameter of the die set used. The result is the maximum opening of the machine with die set in place.
Standard Die Sets
| Part Number | Crimping Range (mm) | Length (mm) |
|---|---|---|
| 18212/10 | 10.0 – 12.0 | 55 |
| 18212/12 | 12.0 – 14.0 | 55 |
| 18212/14 | 14.0 – 16.0 | 55 |
| 18212/16 | 16.0 – 19.0 | 55 |
| 18212/19 | 19.0 – 23.0 | 55 |
| 18212/23 | 23.0 – 27.0 | 55 |
| 18212/27 | 27.0 – 31.0 | 65 |
| 18212/31 | 31.0 – 38.0 | 65 |
