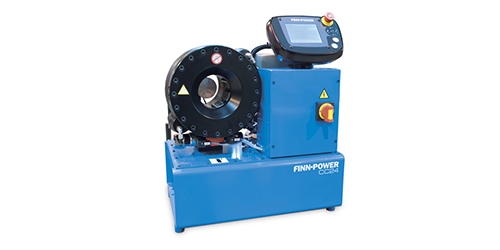

Finn-Power CC 22

Finn-Power CC 22

  • Constant centre line die movement
  • Versatile control system
  • Rapid die change
  • Fast, efficient and accurate crimping
Category:
FinnPower_Crimping_hose_Size

Hose size up to 1 ¼

FinnPower_Crimping_range

Crimping Range – Up to 54mm

FinnPower_Crimping_force

68 tons of crimping force

Finn-Power’s CC22 crimping machine maximises productivity through an optimal force/speed ratio.

CC22 crimper can be mounted on a special QC Tool Base unit (picture on the left). This optional QC Tool Base or the Die Set Rack enables storing the die sets near the machine. Up to 12 die sets can be stored in both for operator convenience.

Standard Inclusions

Finnpower-_control

Integrated UC Control

Finnpower_backstop

Electric Back Stop





Optional Extras

FinnPower_Quickchange

Quick Change Tool

FinnPower_remote_unit

Remote Control Unit

FinnPower_footpedal

Foot Pedal

Technical Data

Description CC22
Crimping Range Ø (mm) ₁ 10-54
Max. crimping force (kN) 680
Number of crimping/hour ₂ 1700
Hose size ID (inch) 1 ¼
Die Set ₃ CC22
Max. opening (mm) ₄ +25
Master die D/L (mm) 84 / 52
Control UC
Motor (kW) 3
Size: Length (mm) 597
Size: Width (mm) 475
Size: Height (mm) 722
Weight (kg) 125

Key:

  1. With standard dies. Crimping range can be increased with special dies.
  2. Theoretical with 10 mm cycle
  3. See table for standard die set data
  4. Maximum opening is the total die travel. Add this value to the minimum crimping diameter of the die set used. The result is the maximum opening of the machine with die set in place.

Standard Die Sets

Part Number Crimping Range (mm) Length (mm)
18315/10 10.0 – 12.0 50
18315/12 12.0 – 14.0 50
18315/14 14.0 – 16.0 50
18315/16 16.0 – 19.0 50
18315/19 19.0 – 23.0 50
18315/23 23.0 – 27.0 50
18315/27 27.0 – 31.0 50
18315/31 31.0 – 36.0 50
18315/36 36.0 – 41.0 50
18315/41 41.0 – 47.0 50
18315/47 47.0 – 54.0 50

In addition to the standard die sets, a wide range of special die sets for different diameters, lengths and forms is available.
